parasol.parasol_main.ParametricSoln

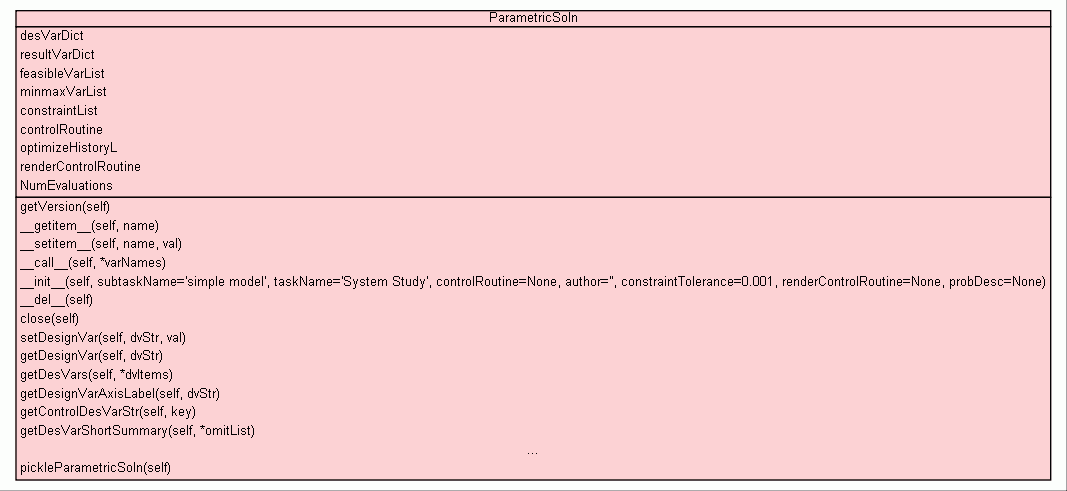

Class ParametricSoln

a parametric solution object for running a parametric model

Instance Methods

[hide private]

getVersion(self)

source code

__getitem__(self, name)
return the value of design or result variable with name

source code

__setitem__(self, name, val)
set the value of design or result variable with name

source code

__call__(self, *varNames)
return the values of design and result variables in varNames list

source code

__init__(self, subtaskName='simple model', taskName='System Study', controlRoutine=None, author='', constraintTolerance=0.001, renderControlRoutine=None, probDesc=None)
x.__init__(...) initializes x; see x.__class__.__doc__ for signature source code

__del__(self)

source code

close(self)

source code

setDesignVar(self, dvStr, val)

source code

getDesignVar(self, dvStr)

source code

getDesVars(self, *dvItems)
handle either single design var or list of design vars

source code

getDesignVarAxisLabel(self, dvStr)

source code

getControlDesVarStr(self, key)

source code

getDesVarShortSummary(self, *omitList)

source code

getDesVarSummary(self, *omitList)

source code

getHTMLDesVarSummary(self, *omitList)

source code

getHTMLResultVarSummary(self)

source code

saveDesVarSummary(self)

source code

setControlRoutine(self, controlRoutine)

source code

setRenderControlRoutine(self, renderControlRoutine)

source code

hasDesignVar(self, dvStr)

source code

addDesignVariable(self, name='desvar', InitialVal=0.0, minVal=-1e+300, maxVal=1e+300, NSteps=10, units='', desc='', step=None, linear=1) source code

addDesVars(self, *dvLists)

source code

hasFeasibleResultVar(self, fvStr)

source code

hasFeasibleControlVar(self, fvCVStr)

source code

getFeasibleVarWithResultVar(self, fvStr)

source code

getFeasibleVarWithControlVar(self, fvCVStr)

source code

makeFeasiblePair(self, outName='feasvar', feasibleVal=0.0, inpName='inpvar', tolerance=1e-006, maxLoops=40, failValue=None) source code

hasMinMaxVar(self, mmvStr)

source code

hasMinMaxControlVar(self, mmvCVStr)

source code

getMinMaxVar(self, mmvStr)

source code

getMinMaxVarWithControlVar(self, mmvCVStr)

source code

makeMinMaxPair(self, outName='feasvar', findmin=0, inpName='inpvar', tolerance=1e-006, maxLoops=400, failValue=None) source code

setResultVariableLimits(self, name='resultvar', loLimit=-1e+300, hiLimit=1e+300) source code

addResultVariable(self, name='resultvar', units='', desc='', loLimit=-1e+300, hiLimit=1e+300) source code

addResultVars(self, *rvLists)

source code

hasResultVar(self, rvStr)

source code

setResultVar(self, rvStr, val)

source code

getResultVar(self, rvStr)

source code

getAxisLabel(self, key, var)

source code

getResultVarAxisLabel(self, rvStr)

source code

getResultVarSummary(self)

source code

saveResultVarSummary(self)

source code

violatesResultConstraint(self)

source code

firstEvaluateIfReqd(self)

source code

evaluate(self)

source code

reCalc(self)

source code

addAssumption(self, label='generic param') source code

addInput(self, label='generic param', value=0.0, units='xxx', format='%g') source code

addOutput(self, label='generic param', value=0.0, units='xxx', format='%g') source code

getAssumptions(self)

source code

getSummary(self)

source code

saveSummary(self)

source code

getShortSummary(self)

source code

getShortHTMLSummary(self)

source code

saveShortSummary(self)

source code

getFullSummary(self)

source code

getFullHTMLSummary(self)

source code

saveFullSummary(self)

source code

saveComment(self, comment='') source code

putImageInPPT(self, filename, title)

source code

putImageInWord(self, filename)

source code

render(self, view='front', ortho=0, width=480, height=360, makeHTML=1, clockX=None, clockY=None, clockZ=None, background='Black', viewMargin=1.06, lookAtOffset=None) source code

pickleParametricSoln(self)

source code

Inherited from object: __delattr__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __repr__, __setattr__, __str__

Class Variables

[hide private]

__firstParametricSoln = None
use to keep track of 1st instance of ParametricSoln

__numPOVRenders = 0
count number of render commands

Instance Variables

[hide private]

desVarDict
dictionary of design Variables in system

resultVarDict
dict of result variables in system

feasibleVarList
list of Feasible Pairs

minmaxVarList
list of MinMax Pairs

constraintList
Optimize.optimize might initialize

controlRoutine
will be called to set component design params

optimizeHistoryL
holds any optimization summary info as [title, summStr]

renderControlRoutine
will be called to make POV drawing, returns List

NumEvaluations
count number of times the evaluate method is called

Properties

[hide private]

Inherited from object: __class__

init(self, subtaskName=`'simple model'`, taskName=`'System Study'`, controlRoutine=None, author=`''`, constraintTolerance=0.001, renderControlRoutine=None, probDesc=None)
(Constructor)

source code

x.__init__(...) initializes x; see x.__class__.__doc__ for signature

Overrides: object.__init__: (inherited documentation)

Class ParametricSoln

__init__(self, subtaskName='simple model', taskName='System Study', controlRoutine=None, author='', constraintTolerance=0.001, renderControlRoutine=None, probDesc=None) (Constructor)

init(self, subtaskName=`'simple model'`, taskName=`'System Study'`, controlRoutine=None, author=`''`, constraintTolerance=0.001, renderControlRoutine=None, probDesc=None)
(Constructor)
