Package parasol :: Module parameters :: Class MinMaxPair

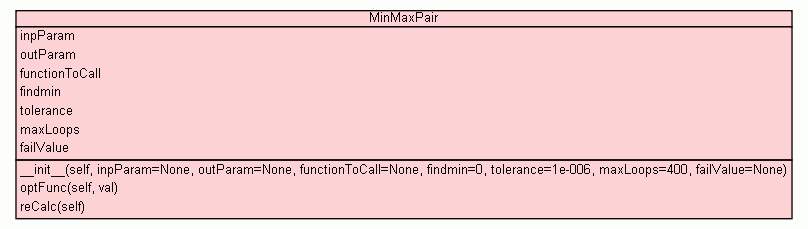

Class MinMaxPair

A MinMaxPair is a paired InputParam and OutputParam where the val property of the InputParam is found such that the val property of the OutputParam is minimized or maximized for the mathematical model under consideration (i.e. as modeled by the function call, functionToCall).

Notes:

The InputParam's val property will be found in the range minVal to maxVal such that OutputParam.val is optimized when calling functionToCall (i.e. a Min/Max constraint is applied to the parameter pair).
It is the users responsibility to assure that InputParam.val is used in functionToCall AND that functionToCall reassigns the val property of OutputParam

Instance Methods

[hide private]

__init__(self, inpParam=None, outParam=None, functionToCall=None, findmin=0, tolerance=1e-006, maxLoops=400, failValue=None)
Initialize parameter properties

source code

optFunc(self, val)

source code

reCalc(self)
calculate the value of inpParam.val that optimizes outParam.val Show non-convergence notification messages if applicable.

source code

Inherited from object: __delattr__, __getattribute__, __hash__, __new__, __reduce__, __reduce_ex__, __repr__, __setattr__, __str__

Instance Variables

[hide private]

inpParam
InputParam object

outParam
OutputParam object

functionToCall
function using InputParam to calc OutputParam

findmin
flag to minimize or maximize OutputParam.val

tolerance
allowable error of OutputParam.val

maxLoops
maximum loops in root solver

failValue
returned value if solution attempt fails

Properties

[hide private]

Inherited from object: __class__

Method Details

[hide private]

init(self, inpParam=None, outParam=None, functionToCall=None, findmin=0, tolerance=1e-006, maxLoops=400, failValue=None)
(Constructor)

source code

Initialize parameter properties

Parameters:

inpParam - input parameter object (InputParam)
outParam - output parameter object (OutputParam)
functionToCall - function using InputParam to calc OutputParam (callable)
findmin - findmin is a logic flag (1=minimize, 0=maximize) (int)
tolerance - allowable error of OutputParam.val (float)
maxLoops - maximum loops in root solver
failValue - returned value if solution attempt fails, (if not input use inpParam.minVal)

Overrides: object.__init__

Class MinMaxPair

__init__(self, inpParam=None, outParam=None, functionToCall=None, findmin=0, tolerance=1e-006, maxLoops=400, failValue=None) (Constructor)

init(self, inpParam=None, outParam=None, functionToCall=None, findmin=0, tolerance=1e-006, maxLoops=400, failValue=None)
(Constructor)
